LifePod

The Vaultek^® LifePod^® is a pin access portable lockbox. It can be secured using the side compression latches to protect the interior from environmental factors such as water, with the added option of securely locking the unit with the keypad. It’s high impact polymer and portable design makes it ideal to transport and protect valuables and personal items. Powered by an Alkaline 9V battery (not included), LifePod^® combines security with convenient access.

Change the default code as soon as possible to prevent unauthorized access to your safe.

Interior may pressurize. LifePod’s airtight seal can suck the lid closed with pressure changes. Release pressure by opening the front keyhole cover when the lid sticks closed.

LifePod’s capacitive keypad has multiple LEDs built in to provide various feedback. The LEDs will illuminate as needed when the unit is awake. To wake the unit, tap the Lock Pad.  An 9V Alkaline battery is required.

Battery Indicator: When the unit is awake, the battery indicator will light either GREEN or RED. Green indicates the battery has sufficient power, and RED indicates the battery is in need of replacement.

Status LED: The status LED will provide feedback on various commands. It will light GREEN when correct codes are entered or *programmed fingerprints are scanned and RED when tampering has occurred.

*Biometric scanner is available on select models.

Lock Pad: The lock pad illuminates RED only when the unit has been locked using the keypad, and requires the use of an authorized access point to unlock it. When locked, and the unit is awake, the lock icon will be solid RED.

1) To get started, undo both side compression latches to open your LifePod.

3) Locate the battery cover on the front wall and remove by pressing on the outer tab (Fig A).

3) Carefully pull out the 9v battery snap inside the battery compartment, and connect an Alkaline 9V battery to the connector. Be sure to snap the battery in the correct orientation (Fig B). A 9v Alkaline battery is not included.

4) When the battery is snapped in you will hear a short welcome tone and the keypad will light up.

5) Once you hear the tone and see the keypad light up, slide the battery into its compartment being mindful to place the battery ribbon underneath the battery first (Fig C). This will make the battery easier to remove when replacing.

6) Replace the battery cover and you are ready to program your LifePod.

Tip! Your code can be a minimum of 4 digits, or as long as 8 digits.

• Two keys can not be pressed simultaneously.
• Programming a new code will overwrite your previous code.

1) First open the unit and tap the lock pad to wake the unit up (Fig K). When the keypad lights up, your LifePod is awake and ready for programming.

2) Press and hold the PROGRAM button for 3 seconds (Fig L) until ALL keys (1-4) turn solid RED.

3) Enter your new code.

4) Press and hold the PROGRAM button a second time for 3 seconds (Fig L) until ALL keys (1-4) turn solid RED.

5) Enter your new code a second time.

6) Press and hold the PROGRAM button a third time for 3 seconds (Fig L). The status LED (Fig M) will flash GREEN and LifePod will beep to confirm the code change is successful.

Need help? Please contact our support team via email at support@vaulteksafe.com.

Your Biometric LifePod can store up to 20 unique fingerprints. The 1st and 2nd fingerprints will be recognized as administrative fingerprints and will be used to authorize additional users. Please refer to “Programming Admin Fingerprints” to get started.

Fingerprint TIPS!

1. Each fingerprint requires 5 registration scans to be enrolled into the safe.
2. Be sure your finger is flat against the scanner (parallel to safe) and your cuticle is over the center of the scanner (this allows the scanner to read where most of the fingerprint details are located).
3. Rotate your finger slightly during registration scans.

Vaultek strongly encourages you to register your LifePod as soon as receive it. Registration provides many benefits including technical support and ordering replacement keys should you replace them. Your LifePod has a unique product part number on the inside of the batty door and a 4-digit ID number engraved on the keys. You will need these numbers to register your new unit.

1. Locate your product part number. It is printed on the first page of your user manual and on the back of the battery cover.

2. Find your 4-digit number engraved on the keys.

3. A copy of your receipt or order number.

4. You are ready to register your LifePod.

IMPORTANT: The manual key can not lock LifePod.

IMPORTANT: Before locking your LifePod, always be sure the side compression latches are latched closed first. This will ensure the locking mechanism engages properly.

To lock, simply press and hold the lock pad for 2 seconds. This engages the internal locking mechanism.

You have two ways of unlocking LifePod either a unique master code or the included keys.

IMPORTANT: Do not undo the compression latches until the unit has been unlocked with the correct master code first. Undoing the compression latches first may cause binding on the lock mechanism and will not unlock.

1) First tap the lock pad to wake the unit up. When the keypad lights up, your LifePod is awake and ready to accept the code.

2) While LifePod is awake enter the master code. (The default master code is 1-2-3-4). When the code is correct, the status LED will turn GREEN and the lock will disengage.

3) Undo both side compression latches, and you can open the unit.

TIP: Your LifePod can protect your belongings against the elements using the side compression latches alone. For extra security, lock the unit with the lock pad as needed.

Backup keys are also included to unlock LifePod.

Backup keys can not lock LifePod.

Backup keys are provided in case of battery failure, allowing you to unlock LifePod. The key hole is located beneath the front protective rubber cover.

To unlock LifePod, simply open the protective cover, insert one of the backup keys, and turn the key clockwise 90 degrees. If the Anti-Picking feature is enabled, the backup keys can not open LifePod.

IMPORTANT: Always make sure the front protective cover is closed tightly to ensure the unit is sealed correctly for protection from the elements.

Your LifePod is equipped with an anti-hacking feature for enhanced security. Using the Anti-Picking feature, you can disable the from key access. This prevents the front keyway from being picked open, but also prevents the lock from being opened with the manual key.

Important! The manual key can not lock LifePod with either setting.

OFF By default the feature is disabled and allows for normal function of the manual key to unlock LifePod.

ON Front keyway is disabled. LifePod can not be picked open, and the manual keys can not be used to open the unit.

Status LED
The status LED will provide feedback on various commands. It will light GREEN when correct codes are entered and RED when an incorrect code is entered.

Tamper Indication
If the status LED is solid RED when awake, this means the unit has detected that an incorrect code has been entered. You can clear the tamper indicator by entering the correct master code.

Battery Indicator
When the unit is awake, the battery indicator will light either GREEN or RED. Green indicates the battery has sufficient power, and Red indicates the battery is in need of replacement.

Lock Pad
The lock pad illuminates RED only when the unit has been locked using the keypad, and requires the use of the master code to unlock it. When locked, and the unit is awake, the lock icon will be solid RED.

TIP: If the lock icon is solid RED, do not undo the side compression latches to open the unit. This means the internal lock is engaged and should not be opened. Enter the master code to unlock the unit, as indicated by the lock icon light going OFF. It is now safe to undo the side latches and open the unit.

By default, the sound is ON. To toggle the sound ON/OFF you need to wake up LifePod® by tapping the center Lock Pad then press and hold keys ‘2’ and ‘3’ together. The status LED will flash RED indicating OFF or GREEN indicating ON.

A micro-USB port is built into LifePod behind the front protective rubber cover.

In the event the battery dies while traveling, and you do not have access to the backup keys, you can power on the unit using the backup micro-USB port.

Simply open the rubber cover and plug in a micro-USB cable (not included) into the port. While the cable is plugged into
an external power source, LifePod will function normally allowing you to enter the code and open the unit.

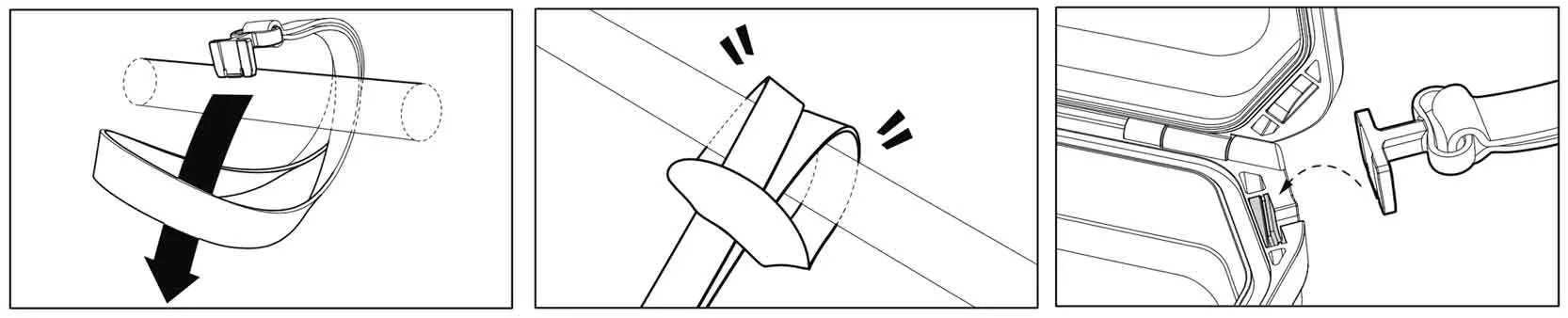

Included is a tether lanyard and steel security cable that can be used to secure the LifePod to a fixed object.

1) First wrap the looped end of the tether around an object of your choice, such as a seat bracket under your vehicle’s seat.

2) Pull the adapter piece through the loop, and cinch tight.

3) Place the adapter piece in its slot in the LifePod, and close the lid.

TIP: A heavy duty steel security cable can be purchased separately if preferred.

The battery is likely bad. Test the normal function by removing the battery and plugging in a micro-USB cable to the micro-USB port. If the unit resumes normal function then the installed battery is bad. We recommend a brand name battery like Duracell or Energizer.

LifePod’s backup keys are designed to unlock LifePod in the event the battery dies, but they can not lock LifePod. NOTE: Enabling the Anti-picking feature ON, will prevent the keys from being able to unlock LifePod as this feature disables the front keyway altogether.

Try the following if you are experiencing a low success rate with the fingerprint scanner.

Let’s perform a soft reset of the scanner by deleting the fingerprints on the safe. Wake the unit by tapping the lock pad so all the keys light up RED. Immediately, press and hold keys ‘1’ and ‘3’ together for 3 seconds until all the keys turn RED then enter your master code to delete all fingerprint IDs. Now let’s try reprogramming your fingerprint using the helpful tips below.

Fingerprint TIPS!

1. Be sure your finger is flat against the scanner (parallel to safe) and your cuticle is over the center of the scanner (this allows the scanner to read where most of the fingerprint details are located).
2. During the 5 scan programming process for each finger, slightly repositioning your finger after each scan will store more information and increase your success rate.
3. Biometric technology is dependent on our anatomical information, and in some cases different fingers may program better than others. For example, your index finger may not register very well, but your thumb may contain higher detail levels and have a much higher success rate. We suggest to try different fingers including your thumb and see if you have better results.
4. To increase success rate register the same finger multiple times. Note, that adding more than two fingerprints requires authorization from the two administrative prints.

Program the First Print

1) Tap the lock pad to wake the unit up.

2) Quickly tap the program button.

3) When the ‘1’ key starts blinking place your fingerprint on the scanner.

4) Place the same fingerprint again over the scanner at a slightly different angle and remove it when the status LED turns GREEN. You will repeat this process until all 5 registration scans are complete. This completes enrollment for the first admin print.

5) Test to see if the safe will open using your fingerprint.

Still having issues? Please contact our support team via email at support@vaulteksafe.com

Test normal function by removing the battery and plugging in a micro-USB cable to the micro-USB port to power the unit so you can unlock and replace the battery. We recommend a brand name battery like Duracell or Energizer.

If the lid is having issues opening, it is likely pressurized. Open the front key cover to release the pressure.

To order a set of keys, charging kit, or steel cable, fill out our Spare Parts form.

Plug in a micro-USB cable to the micro-USB port to power the unit so you can unlock and replace the battery. We recommend a brand name battery like Duracell or Energizer.

Please email our support team at support@vaulteksafe.com. Be sure to provide your order details and the issue you are experiencing. We look forward to getting this resolved for you!

A new 9v Alkaline battery will last up to one year with normal use. Normal use is locking and unlocking the LifePod 1-2 times per day.

Yes, LifePod qualifies as a secure lockbox for traveling. If transporting firearms, be sure to inform your airline agent when checkin in due to Federal law. Be aware, that you may be asked to open your LifePod, and person having the master code should be present in case such a request is made by a government authority.

Yes, the compression latches are designed to seal the interior chamber from the elements and great for recreational use. The lock can be used when a higher level of security is needed.

LifePod is not fireproof, but is waterproof up to 1 foot deep. It is designed to stay afloat in the water with weight up to 2lb.

Download the user manual here.
