Support for select Vaultek accessories.

Slider Mounting Plate

Nano Key

Nano Key Biometric

Nano Key 2.0

Nano Key 2.0 Biometric

Warranty

Vaultek satisfaction guarantee.

Register Safe

Improved Support, Product Updates, Replacement Parts.

Available Accessories

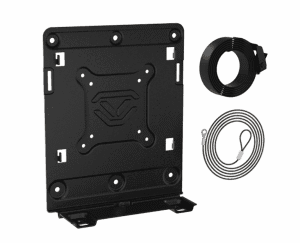

Slider Series Universal Mount

Download the Universal Mount user manual >

Vehicle Placement: We recommend installing the vehicle mount on the backside of the passenger seat. You can adjust to suit your personal preference, but we’ve found this position to offer quick access by simply reaching behind the passenger’s set while in the driver’s position.

STEP 1 : Wrap around the seat

Using the strap and cam buckle provided, position the mounting plate behind the passenger seat, and wrap around the seat. Feed the loose end of the strap through the cam buckle and pull to a comfortable tightness so the mounting plate is not loose.

Depending on your seat size and configuration, the cam buckle will rest on the outside of the seat. This will minimize any interference with seating functions.

Tip! Use the strap ties provided to help organize excess strapping outside the cam buckle.

STEP 2 : Anchor security cable to vehicle

The included security cable secures the safe to your vehicle to help deter theft and help prevent common smash and grabs. It can wrap around any of the vehicle’s bracketry under the seat or loop around a fixed object your choice.

Using the collared end of the security cable wrap the cable around a fixed object or seat bracket and feed the collared end through the looped end of the cable to anchor in place.

STEP 3 : Attach security cable to mounting plate

After the security cable is anchored to your vehicle and looped around a fixed object, attach the security cable to the safe’s mounting plate.

Press and loose collared end of the cable into the mounting plate bottom. A threaded insert on the mounting plate goes through the open hole of the collar.

Use the provided security nut to tighten the cable onto the mounting plate and secure in place.

STEP 4 : Install safe onto mounting plate

Now that the mounting plate is securely in place and the security cable attached, the next step is installing your safe on the mounting plate just as you normally would. Open the safe and match the locking tabs on the plate with the corresponding slots on the safe.

Having issues?Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out.

Slider Series Car Rail Mount

Download the Rail Mount user manual >

Can I put my seat back? The results may vary depending on your car model. If you have any issues please email support@vaulteksafe.com.

Vehicle Placement: We recommend installing the vehicle mount on the outside rail of the passenger seat. You can adjust to suit your personal preference, but we’ve found this position to offer quick access by simply reaching behind the passenger’s set while in the driver’s position.

As a safety precaution, we recommend consulting with a certified automotive technician before installation.

STEP 1 : Install main bracket

Depending on your vehicle’s design, the vehicle mount offers (3) different position to secure the main bracket to your seat rail. Select your preferred setup, and install the main bracket. Instructions for each setup below.

  • A) Install Rail (simplest)
  • B) Existing Rail Hardware
  • C) Existing Rail Hardware (alt.)

Tip! View your vehicle’s configuration and select which placement works best. You might need to bring the passenger seat forward to expose the rail and make your workspace roomier.

Option A : Installing Inside the Rail

1. Slide rail adapter into the open end of the rail.

2. Attach the main bracket by threading alan head screw through the main bracket’s center hole.

Tip! (3) Alan head screws are provided, select the one that fits best.

3. Firmly tighten the screw into the adapter plate. The friction between the adapter plate and your car’s seat rail holds the main bracket in place.

Option B : Using Existing Hardware

1. Remove outer frame rail bolt from your vehicle. This is beneath removable plastic covers on some late model vehicles.

2. Position the adapter bracket in place and reinstall the removed frame rail bolt. Tighten firmly.

3. Attach the main bracket to the adapter bracket using hardware provided. Tighten firmly.

Tip! Two holes sets are available in the adapter bracket to help you position the main bracket as close as possible to your seat back. This lessens how much safe protrudes.

4. Complete.

Option C : Using Existing Hardware (alt.)

1. Remove inner rail frame bolt on your vehicle.

2. Position the adapter bracket in rail and reinstall the removed frame rail bolt. Tighten firmly.

3. Attach the main bracket to the adapter bracket using hardware provided. Tighten firmly.

Tip! Two hole sets are available in the adapter bracket to help you position the main bracket as close as possible to your seat back. This lessens how much safe protrudes.

4. Complete.

STEP 2 : Attach mounting plate

Now that the main bracket is securely installed in your vehicle, the next step is attaching your mounting plate to the main bracket. The original mounting plate included with your safe will mount directly to the newly installed bracket, but additional mounting plates can be purchased separately.

Match (2) of the lower holes from the mounting plate with the main bracket. You can choose to offset the plate and select the (2) holes that suits your application. Install with the remaining hardware provided, only the outside hole in the main bracket will need the nut.

Tip! Before tightening the nut all the way the arced slot allows some adjustment of angle to suit your preference.

Tip! Additional mounting plates are available through our website to provide you with multiple mounting positions and helpful if the safe is transported often.

STEP 3 : Attach safe to mounting plate

Now that the mounting plate is securely installed on the main bracket, the next step is racking your safe on the mounting plate just as you normally would. Open the safe and match the locking tabs on the plate with the corresponding slots on the safe.

Tip! Slide passenger seat back in place as close to the safe as possible.

Having issues?Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out.

Nano Key

Nano Key, part of Vaultek’s remote key technology and provide instant access to your safe in the event you need immediate entry. Its small footprint and mountable base make it easy to hide and conceal anywhere, making it suitable for us as a panic button. Please use responsibly.

Take caution when using this feature and be responsible. Security can be compromised in the event Nano Key is lost or stolen. Only pair Nano Key after thoroughly understanding the inherent risks. ALWAYS unpair Nano Key in the event it is lost or stolen.

– Avoid unintentional safe open, Nano Key should only be used when the safe is in sight.
WARNING anyone including children can access the safe with Nano Key.
ALWAYS unpair Nano Key in the event it is lost or stolen.

Nano Key is compatible with Bluetooth and WiFi safes. This includes VT Series Bluetooth models, (VT/VTi), MX Series Bluetooth and WiFi models (MX/MXi/NMX/NMXi), Slider Series Bluetooth and WiFi models (SL20/SL20i/NSL20/NSL20i) and RS Series WiFi models (RS200i/RS500i/RS800i). It is not compatible with Bluetooth 2.0 safes as well as LifePod models. If you ordered this item by mistake please email our support team at support@vaulteksafe.com. They would be more than happy to help you out.

Be sure to follow ALL steps for proper function.

STEP 1 : Pair to Your Safe

Each safes has its own pairing instructions. To find pairing instructions for your safe select your model here.

STEP 2 : Assign an Entry Mode

After pairing, Nano Key will be immediately active to test functionality, but then deactivate. Nano Key settings will need to be set to either On Demand or Progressive in order for Nano Key to open your safe. If you do not assign an entry mode immediately after pairing the Nano Key, it will disable when the safe goes to sleep. This occurs when the safe has been idle for 20 seconds.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Compatibility

Nano Key is compatible with Bluetooth and WiFi safes. This includes VT Series Bluetooth models, (VT/VTi), MX Series Bluetooth and WiFi models (MX/MXi/NMX/NMXi), Slider Series Bluetooth and WiFi models (SL20/SL20i/NSL20/NSL20i) and RS Series WiFi models (RS200i/RS500i/RS800i). It is not compatible with 10 Series, 20 Series, LifePod, LifePod 2.0, and Essential Series.

If you ordered this item by mistake please email our support team at support@vaulteksafe.com. They would be more than happy to help you out.

Pairing

Only pair Nano Key 2.0 after thoroughly understanding the inherent risks.

Take caution when using this feature and be responsible. Security can be compromised in the event Nano Key is lost or stolen.

– Avoid unintentional safe open, Nano Key should only be used when the safe is in sight.
WARNING anyone including children can access the safe with Nano Key.
ALWAYS unpair Nano Key in the event it is lost or stolen.

Be sure to follow ALL steps for proper function.

STEP 1 : Pair to Your Safe

Make sure you are within range of the safe, approximately 6-8 feet, for the Nano Key 2.0 to operate.

Nano Key is compatible with Bluetooth and WiFi safes. This includes VT Series Bluetooth models, (VT/VTi), MX Series Bluetooth and WiFi models (MX/MXi/NMX/NMXi), Slider Series Bluetooth and WiFi models (SL20/SL20i/NSL20/NSL20i) and RS Series WiFi models (RS200i/RS500i/RS800i). It is not compatible with 10 Series, 20 Series, LifePod, LifePod 2.0, and Essential Series. If you ordered this item by mistake please email our support team at support@vaulteksafe.com. They would be more than happy to help you out.

Each safes has its own pairing instructions. To find pairing instructions for your safe select your model here.

STEP 2 : Assign an Entry Mode

After pairing, Nano Key will be immediately active to test functionality, but then deactivate. Nano Key settings will need to be set to either On Demand or Progressive in order for Nano Key to open your safe. If you do not assign an entry mode immediately after pairing the Nano Key, it will disable when the safe goes to sleep. This occurs when the safe has been idle for 20 seconds.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out

Mounting

You must be within 6′ from the safe to pair Nano Key. The mountable base comes with double-sided tape allowing for quick and easy installation.

Only pair Nano Key after thoroughly understanding the inherent risks.

– Avoid unintentional safe open, Nano Key should only be used when the safe is in sight.
– WARNING anyone including children can access the safe with Nano Key.
– ALWAYS unpair Nano Key in the event it is lost or stolen.

1) Before installing your mountable base, clean the mounting area to ensure surface is dry for proper adhesion.

2) Simply peel off the protective layer on the reverse side of the base, and place where desired.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out

Nano Key Biometric

Nano Key Biometric, part of Vaultek’s remote key technology and provide instant access to your safe in the event you need immediate entry. Its small footprint and mountable base make it easy to hide and conceal anywhere, making it suitable for us as a panic button. Please use responsibly.

Nano Key is compatible with Bluetooth and WiFi safes. This includes VT Series Bluetooth models, (VT/VTi), MX Series Bluetooth and WiFi models (MX/MXi/NMX/NMXi), Slider Series Bluetooth and WiFi models (SL20/SL20i/NSL20/NSL20i) and RS Series WiFi models (RS200i/RS500i/RS800i). It is not compatible with 10 Series, 20 Series, LifePod, LifePod 2.0, and Essential Series. If you ordered this item by mistake please email our support team at support@vaulteksafe.com. They would be more than happy to help you out.

Be sure to follow ALL steps for proper function.

STEP 1 : Program Admin Fingerprint

The first programmed fingerprint is considered the Admin print. This print is necessary to authorize adding in additional users or to authorize the deletion of all prints.

After the Admin print has been enrolled, you can add additional users, up to 20 unique users in total. This is very helpful in the event Nano Key Biometric is having a hard time reading your initial print, or if you wish to gran other users authorized access to your safe.

STEP 2 : Pair to Your Safe

Each safes has its own pairing instructions. To find pairing instructions for your safe select your model here.

STEP 3 : Assign an Entry Mode

After pairing, Nano Key Biometric will be immediately active to test functionality, but then deactivate. Nano Key Biometric settings will need to be set to either On Demand or Progressive in order for Nano Key to open your safe. If you do not assign an entry mode immediately after pairing the Nano Key, it will disable when the safe goes to sleep. This occurs when the safe has been idle for 20 seconds.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Compatibility

Nano Key Biometric is compatible with Bluetooth and WiFi safes. This includes VT Series Bluetooth models, (VT/VTi), MX Series Bluetooth and WiFi models (MX/MXi/NMX/NMXi), Slider Series Bluetooth and WiFi models (SL20/SL20i/NSL20/NSL20i) and RS Series WiFi models (RS200i/RS500i/RS800i). It is not compatible with 10 Series, 20 Series, LifePod, LifePod 2.0, and Essential Series.

If you ordered this item by mistake please email our support team at support@vaulteksafe.com. They would be more than happy to help you out.

Programming and Pairing

Be sure to follow ALL steps for proper function.

STEP 1 : Program Fingerprint

STEP 2 : Pair to Your Safe

STEP 3 : Assign an Entry Mode

STEP 1 : Program Fingerprint

• First print programmed is the admin print.
• Admin print has to be scanned each time to add more fingerprints.
• 20 prints total capacity.

Programming Admin Print

The first Admin print is considered the Admin print. This print is necessary to authorize adding in additional users or to authorize the deletion of all prints.

Fingerprint Tips!
– A programmed print consists of 3 registration scans during programming.
– Reposition the finger on the scanner for the each registration scan to trap varying angles and store more print information.

1) To get started, quickly press the PROGRAM button. The LED ring will turn solid RED indicating you can place your ginger on the scanner for the first of (3) registration scans. Place your thumb or finger on the scanner, when you hear a confirmation beep and the LED ring flashes GREEN, lift your finger and repeat two more registration scans to complete programming for the first user.

Troubleshooting! If you hear two beeps and the LED ring stays RED, the scan was accepted and you will need to start again.

Programming Additional Prints (3-20)

After the Admin print has been locked in, you can add additional users or fingerprints, up to 20 unique users in total. This is very helpful in the event Nano Key Biometric is having a hard time reading your initial print, or if you wish to grant other users authorized access to your safe.

 1) To get started, quickly press the top PROGRAM button. The LED ring will turn solid YELLOW requesting you can place the Admin print on the scanner to authorizes the request to add another user. When successful, you will hear a confirmation beep and the LED ring will flash GREEN then back to RED indicating you can proceed with the first of (3) registration scans for additional prints.

Troubleshooting! If you hear two beeps, and the LED ring stays RED, the scan was not accepted and you will need to start again.

STEP 2 : Pair to Your Safe

Each safes has its own pairing instructions. To find pairing instructions for your safe select your model here.

STEP 3 : Assign an Entry Mode

After pairing, Nano Key Biometric will be immediately active to test functionality, but then deactivate. Nano Key settings will need to be set to either On Demand or Progressive in order for Nano Key to open your safe. If you do not assign an entry mode immediately after pairing the Nano Key Biometric, it will disable when the safe goes to sleep. This occurs when the safe has been idle for 20 seconds.

Refer to your safe user manual for instructions specific to your safe.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Fingerprint Programming Tips!

1) A programmed print consists of 3 registration scans during programming.

2) When scanning, be sure to aim the cuticle of your finger or thumb flat over the center of the scanner (this places the center of your fingerprint in the middle of the scanner).

3) In some cases different fingerprints may program better than others. For example, your index finger may not register very well, but your thumb may container higher detail levels and have a much higher success rate. We suggest to try different fingers and see if you have better results with your thumb.

4) When programming be sure to lift and reposition fingerprint at a difference angle during the 3 registration scans to store more print information.

5) Program your thumb two, three, or even four times. This stores more print information if your print is having troubles reading. As an example, you can program a print standing up, then another sitting down to trap different angles. You have 20 available slots for programming to use as needed.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Programming Admin Print

The first Admin print is considered the Admin print. This print is necessary to authorize adding in additional users or to authorize the deletion of all prints.

• First print programmed is the admin print.
• Admin print has to be scanned each time to add more fingerprints.
• 20 prints total capacity.

Fingerprint Programming Tips!

– When scanning, be sure to aim the cuticle of your finger or thumb flat over the center of the scanner (this places the center of your fingerprint in the middle of the scanner).
– When programming be sure to lift and reposition fingerprint at a difference angle during the 3 registration scans to store more print information.
– Reposition the finger on the scanner for the each registration scan to trap varying angles and store more print information.

STEP 1 : Program Fingerprint

Programming Admin Print

The first Admin print is considered the Admin print. This print is necessary to authorize adding in additional users or to authorize the deletion of all prints.

1) To get started, quickly press the PROGRAM button. The LED ring will turn solid RED indicating you can place your ginger on the scanner for the first of (3) registration scans. Place your thumb or finger on the scanner, when you hear a confirmation beep and the LED ring flashes GREEN, lift your finger and repeat two more registration scans to complete programming for the first user.

Troubleshooting! If you hear two beeps and the LED ring stays RED, the scan was accepted and you will need to start again.

After the Admin print has been locked in, you can add additional users or fingerprints, up to 20 unique users in total. This is very helpful in the event Nano Key Biometric is having a hard time reading your initial print, or if you wish to grant other users authorized access to your safe.

STEP 2 : Pair to Your Safe

To find instructions for your safe select your model here.

STEP 3 : Assign an Entry Mode

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Programming Additional Prints

After the Admin print has been locked in, you can add additional users or fingerprints, up to 20 unique users in total. This is very helpful in the event Nano Key Biometric is having a hard time reading your initial print, or if you wish to grant other users authorized access to your safe.

• First print programmed is the admin print.
• Admin print has to be scanned each time to add more fingerprints.
• 20 prints total capacity.

Programming Additional Prints

 1) To get started, quickly press the top PROGRAM button. The LED ring will turn solid YELLOW requesting you can place the Admin print on the scanner to authorizes the request to add another user. When successful, you will hear a confirmation beep and the LED ring will flash GREEN then back to RED indicating you can proceed with the first of (3) registration scans for additional prints.

Troubleshooting! If you hear two beeps, and the LED ring stays RED, the scan was not accepted and you will need to start again.

Tip! A total of 19 fingerprints can be programmed outside the first Admin print.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Deleting Fingerprints

This operation will unpair Nano Key Biometric, and will delete all fingerprints. You can not individually delete fingerprints.

1) Press and hold the top PROGRAM button for 3 seconds, until the LED ring starts glowing YELLOW. This is prompting you to scan the Admin print first. The Admin print is the first fingerprint enrolled in Nano Key Biometric, and must be scanned to authorize the deletion of all prints.

2) A confirmation beep and GREEN LED ring confirms the delete is complete.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Mounting

The mountable base comes with double-sided tape allowing for quick and easy installation.

Important! You must be within 6′ from the safe to pair Nano Key Biometric.

1) Before installing your mountable base, clean the mounting area to ensure surface is dry for proper adhesion.

2) Simply peel off the protective layer on the reverse side of the base, and place where desired.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out

Nano Key 2.0

Nano Key 2.0, part of Vaultek’s remote key technology and provide instant access to your safe in the event you need immediate entry. Its small footprint and mountable base make it easy to hide and conceal anywhere, making it suitable for us as a panic button.

Take caution when using this feature and be responsible. Security can be compromised in the event Nano Key 2.0 is lost or stolen. Only pair Nano Key 2.0 after thoroughly understanding the inherent risks.

– Avoid unintentional safe open, Nano Key 2.0 should only be used when the safe is in sight.
WARNING anyone including children can access the safe with Nano Key 2.0.
ALWAYS unpair Nano Key 2.0 in the event it is lost or stolen.

Nano Key 2.0 Biometric is compatible with Bluetooth 2.0 safes. This includes 10 Series Bluetooth 2.0 model (VS10i) and 20 Series Bluetooth 2.0 models (VS20/VS20i). It is not compatible with Bluetooth safes, WiFi safes, as well as LifePod models. If you ordered this item by mistake please email our support team at support@vaulteksafe.com. They would be more than happy to help you out.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Compatibility

Nano Key 2.0 is compatible with Bluetooth 2.0 safes. This includes 10 Series Bluetooth 2.0 model (VS10i) and 20 Series Bluetooth 2.0 models (VS20/VS20i). It is not compatible with Bluetooth safes, WiFi safes, as well as LifePod models.

If you ordered this item by mistake please email our support team at support@vaulteksafe.com. They would be more than happy to help you out.

Pairing

Only pair Nano Key 2.0 after thoroughly understanding the inherent risks.

Take caution when using this feature and be responsible. Security can be compromised in the event Nano Key is lost or stolen.

– Avoid unintentional safe open, Nano Key 2.0 should only be used when the safe is in sight.
– WARNING anyone including children can access the safe with Nano Key 2.0.
– ALWAYS unpair Nano Key 2.0 in the event it is lost or stolen.

Important!

– Make sure you are within range of the safe, approximately 6-8 feet, for the Nano Key 2.0 to operate.
– Make sure safe battery is sufficiently charge or plugged in. As a built-in failsafe to prevent Nano Key 2.0 from using remaining power, the remote will not open your safe if the battery is less than 5%.

1) With the safe open press and hold the ‘5’ key then “PROGRAM” button together (3 seconds) until all keys (1-5) start blinking RED.

2) Immediately aim Nano Key 2.0 towards the safe.

3) Press and hold the Nano Key 2.0 button until the safe keypad flashes GREEN to indicate pairing is successful.

Troubleshooting! If the keypad does not flash green then simply start over with step 1.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Mounting

The mountable base comes with double-sided tape allowing for quick and easy installation.

Important! You must be within 6′ from the safe to pair Nano Key 2.0.

1) Before installing your mountable base, clean the mounting area to ensure surface is dry for proper adhesion.

2) Simply peel off the protective layer on the reverse side of the base, and place where desired.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Enabled/Disable

Enabling/disabling Nano Key Bluetooth 2.0 from the app or keypad will NOT unpair a Nano Key 2.0 from the safe’s memory.

Nano Key 2.0 can be temporarily disabled as needed. When disabled, Nano Key 2.0 can not be used to open a paired safe. When enabled, Nano Key 2.0 will resume normal operation and open a paired safe.

1) Press and hold the ‘4’ key and “PROGRAM” button together (3 seconds) to enable/disable Nano Key 2.0.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Unpairing

In the event a Nano Key 2.0 is lost or stolen, you can unpair the lost Nano Key 2.0 from the safe’s memory. This will remove all paired Nano Key 2.0s from the safe.

1) Press and hold keys ‘2’ ‘5’ then “PROGRAM” button together (3 seconds) until all keys turn GREEN. This indicates that all paired Nano Key 2.0s have been deleted from memory.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Nano Key 2.0 Biometric

Nano Key 2.0 Biometric is part of Vaultek’s remote key technology and provides instant access to your safe in the event you need immediate entry. Its small footprint and mountable base make it easy to hide and conceal anywhere, making it suitable for us as a panic button. A total of 20 fingerprints can be programmed into Nano Key 2.0 Biometric. The first programmed fingerprint is considered the Admin print. The Admin print is necessary to authorize adding in additional users or to authorize the deletion of all prints.

Specifications

  • Compatible with Bluetooth 2.0 enabled safes only.
  • Nano Key 2.0 Biometric only pairs with one safe at a time.
  • Nano Key 2.0 should only be used when the safe paired is within sight in the same room, the normal range of 6-8 range.
  • Rechargeable power lasts for 3 months on a single charge.
  • 2.5 hours to recharge. Can be left plugged in at all times.
  • Up to 20 ft range – varies per model.
  • Stores up to 20 unique fingerprints.
  • One user consists of 3 scans during programming.
  • Security Sleep Mode: Activates when six (6) consecutive incorrect fingerprints are scanned and does not accept any scans for four (4) minutes. If a finger is spaced during this mode, the LED ring will flash RED and the alarm beeps.
  • Low Battery Warning: During standby once the battery is low, the LED ring flashes RED and sounds several rapid beeps every 5 minutes and continues until battery dies.

Nano Key 2.0 Biometric is compatible with Bluetooth 2.0 safes. This includes 10 Series Bluetooth 2.0 model (VS10i) and 20 Series Bluetooth 2.0 models (VS20/VS20i). It is not compatible with Bluetooth safes, WiFi safes, as well as LifePod models. If you ordered this item by mistake please email our support team at support@vaulteksafe.com. They would be more than happy to help you out.

Take caution when using this feature and be responsible. Security can be compromised in the event Nano Key 2.0 is lost or stolen. Only pair Nano Key 2.0 after thoroughly understanding the inherent risks. ALWAYS unpair Nano Key 2.0 in the event it is lost or stolen.

Important! Be sure to follow ALL steps for proper function.

STEP 1 : Program Admin Print (First User)

The first programmed fingerprint is considered the Admin print. This print is necessary to authorize adding in additional users or to authorize the deletion of all prints.

After the Admin print has been enrolled, you can add additional users, up to 20 unique users in total. This is very helpful in the event Nano Key 2.0 Biometric is having a hard time reading your initial print, or if you wish to gran other users authorized access to your safe.

STEP 2 : Pair Nano Key 2.0 Biometric to Your Safe

Nano Key 2.0 Biometric can be manually a paired to a safe.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Compatibility

Nano Key 2.0 Biometric is compatible with Bluetooth 2.0 safes. This includes 10 Series Bluetooth 2.0 model (VS10i) and 20 Series Bluetooth 2.0 models (VS20/VS20i). It is not compatible with Bluetooth safes, WiFi safes, as well as LifePod models. If you ordered this item by mistake please email our support team at support@vaulteksafe.com. They would be more than happy to help you out.

Programming and Pairing

Be sure to follow ALL steps for proper function.

STEP 1 : Program Fingerprint

• First print programmed is the admin print.
• Admin print has to be scanned each time to add more fingerprints.
• 20 prints total capacity.

Program Admin Print (First User)

The first programmed fingerprint is considered the Admin print. This print is necessary to authorize adding in additional users or to authorize the deletion of all prints.

Fingerprint Tips!
– A programmed print consists of 3 registration scans during programming.
– Reposition the finger on the scanner for the each registration scan to trap varying angles and store more print information.

1) To get started, quickly press the top PROGRAM button on Nano Key 2.0 Biometric. The LED ring will turn solid RED indication you can place your finger on the scanner for the first (3) registration scans.

2) Place your thumb or finger on the scanner, when you hear a confirmation beep and the LED ring flashes GREEN, lift your finger and repeat two more registration scans to complete programming the first user.

STEP 2 : Programming Additional Prints (Prints 3-20)

After the Admin print has been enrolled, you can add additional users, up to 20 unique users in total. This is very helpful in the event Nano Key 2.0 Biometric is having a hard time reading your initial print, or if you wish to gran other users authorized access to your safe.

STEP 3 : Pair Nano Key 2.0 Biometric to Your Safe

Important! You must be within 6′ from the safe to pair Nano Key Bluetooth 2.0.

Nano Key 2.0 Biometric can be manually a paired to a safe.

1) To pair Nano Key 2.0 Biometric with a new safe, first ready safe to receive the pairing transmission from the Nano Key.

2) With the safe open press and hold the ‘5’ key then “PROGRAM” button together (3 seconds) until all keys (1-5) start blinking RED.

3) On the Nano Key 2.0, tap the top PROGRAM button 3 times. This will enter manual pairing mode, and the LED ring will glow YELLOW prompting the scan of an Admin fingerprint.

4) Scan an Admin fingerprint and Nano Key will pair with the new safe.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Fingerprint Programming Tips!

1) A programmed print consists of 3 registration scans during programming.

2) When scanning, be sure to aim the cuticle of your finger or thumb flat over the center of the scanner (this places the center of your fingerprint in the middle of the scanner).

3) In some cases different fingerprints may program better than others. For example, your index finger may not register very well, but your thumb may container higher detail levels and have a much higher success rate. We suggest to try different fingers and see if you have better results with your thumb.

4) When programming be sure to lift and reposition fingerprint at a difference angle during the 3 registration scans to store more print information.

5) Program your thumb two, three, or even four times. This stores more print information if your print is having troubles reading. As an example, you can program a print standing up, then another sitting down to trap different angles. You have 20 available slots for programming to use as needed.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Program Admin Print (First User)

The first programmed fingerprint is considered the Admin print. This print is necessary to authorize adding in additional users or to authorize the deletion of all prints.

TIP! Reposition the fingerprint on the scanner for each registration scan to trap varying angles and to store more print information.

1) To get started, quickly press the top PROGRAM button on Nano Key 2.0 Biometric. The LED ring will turn solid RED indication you can place your finger on the scanner for the first (3) registration scans.

2) Place your thumb or finger on the scanner, when you hear a confirmation beep and the LED ring flashes GREEN, lift your finger and repeat two more registration scans to complete programming the first user.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Programming Additional Fingerprints

After the Admin print has been enrolled, you can add additional users, up to 20 unique users in total. This is very helpful in the event Nano Key 2.0 Biometric is having a hard time reading your initial print, or if you wish to gran other users authorized access to your safe.

1) To get started, quickly press the top PROGRAM button. Teh LED ring will turn solid YELLOW requesting you to place the Admin print on the scanner to authorize the new user.

2) When the admin print is scanned successful,, you will hear a confirmation beep and the LED ring will flash GREEN then back to RED indicating you can proceed with the first of (3) Registration scans. Scan, lift, and repeat for the (3) registration scans to complete programming the new user.

Troubleshooting! If you hear two beeps and the LED ring stays RED, the scan was not accepted and you will need to start over.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Deleting Fingerprints

This operation will unpair Nano Key 2.0 Biometric, and will delete all fingerprints. You can not individually delete fingerprints.

1) Press and hold the top PROGRAM button for 3 seconds, until the LED ring starts glowing YELLOW. This is prompting you to scan the Admin print first. The Admin print is the first fingerprint enrolled in Nano Key 2.0 Biometric, and must be scanned to authorize the deletion of all prints.

2) A confirmation beep and GREEN LED ring confirms the delete is complete.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Mounting

The mountable base comes with double-sided tape allowing for quick and easy installation.

Important! You must be within 6′ from the safe to pair Nano Key 2.0 Biometric.

1) Before installing your mountable base, clean the mounting area to ensure surface is dry for proper adhesion.

2) Simply peel off the protective layer on the reverse side of the base, and place where desired.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Low Fingerprint Success Rate

If you are experiencing a low fingerprint success rate try the following steps. Note, this operation will unpair Nano Key 2.0 Biometric, and will delete all fingerprints. You can not individually delete fingerprints. After that you will program a new user using the helpful programming tips.

STEP ONE: Delete the Fingerprints in Nano Key 2.0 Biometric

1) Press and hold the top PROGRAM button for 3 seconds, until the LED ring starts glowing YELLOW. This is prompting you to scan the Admin print first. The Admin print is the first fingerprint enrolled in Nano Key 2.0 Biometric, and must be scanned to authorize the deletion of all prints.

2) A confirmation beep and GREEN LED ring confirms the delete is complete.

STEP TWO: Program a New Fingerprint into Nano Key 2.0 Biometric

Now program a new print into Nano Key 2.0 Biometric using the helpful tips below!

Tip! When scanning, be sure to aim the cuticle of your finger or thumb flat over the center of the scanner (this places the center of your fingerprint in the middle of the scanner).

Tip! In some cases different fingerprints may program better than others. For example, your index finger may not register very well, but your thumb may container higher detail levels and have a much higher success rate. We suggest to try different fingers and see if you have better results with your thumb.

Tip! When programming be sure to lift and reposition fingerprint at a difference angle during the 3 registration scans to store more print information.

Tip! Program your thumb two, three, or even four times. This stores more print information if your print is having troubles reading. As an example, you can program a print standing up, then another sitting down to trap different angles. You have 20 available slots for programming to use as needed.

You are now ready to program a new user!

The first programmed fingerprint is considered the Admin print. This print is necessary to authorize adding in additional users or to authorize the deletion of all prints.

TIP! Reposition the fingerprint on the scanner for each registration scan to trap varying angles and to store more print information.

1) To get started, quickly press the top PROGRAM button on Nano Key 2.0 Biometric. The LED ring will turn solid RED indication you can place your finger on the scanner for the first (3) registration scans.

2) Place your thumb or finger on the scanner, when you hear a confirmation beep and the LED ring flashes GREEN, lift your finger and repeat two more registration scans to complete programming the first user.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

The LED Scanner is Flashing RED

Anytime Nano Key 2.0 Biometric is used to open the safe, if the LED ring flashes RED and sounds several rapid beeps, this indicates battery is low and in need of recharging.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Still need help?

We’ve got you covered.
