DS5i Smart Station

This safe needs to be plugged in continuously for normal function and two AAA batteries need to be installed.

1. Use the power kit provided to plug the safe into a wall outlet.

These batteries provide backup power in the event of a power outage and will provide power for about 15 hours to access to the safe.

If the power goes out or the safe is unplugged, the charging capabilities and the front LED screen will turn off to preserve battery life and the backup batteries will provide backup power.

1. Purchase two brand new AAA batteries. We recommend using brand name batteries from Duracell/Energizer or other reputable brands.

2. Open the safe.

3. Locate the battery compartment at the back of the safe drawer.

4. Install two AAA batteries.

Your safe can store up to 20 unique fingerprints. The 1st and 2nd fingerprints will be recognized as administrative fingerprints and will be used to authorize additional users 3 to 20. Each fingerprint requires 3 registration scans to be enrolled into the safe.

Fingerprint TIPS!

• Place the core of the fingerprint flat over the center of the scanner. This allows the scanner to read where most of the fingerprint detail is located.
• Rotate your finger slightly between registration scans to store print variations for increased accuracy. Biometric technology is dependent on our anatomical information, and in some cases different fingers may program better than others. For example, your index finger may not register very well, but your thumb may contain higher detail levels and have a much higher success rate. We suggest to try different fingers including your thumb and see if you have better results.
• To increase success rate register the same finger multiple times. Note, that adding more than two fingerprints requires authorization from the two administrative prints.

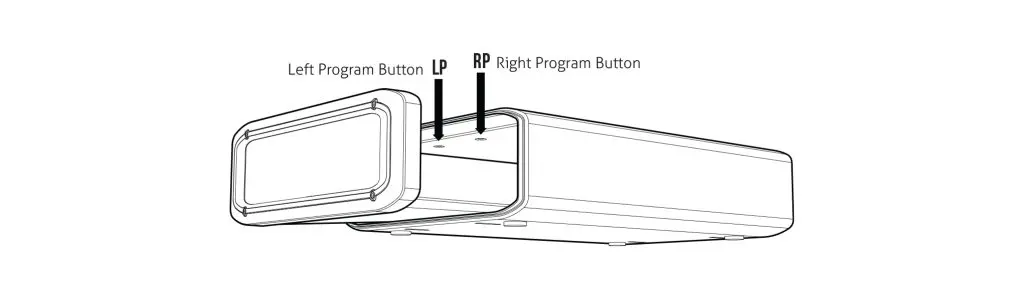

Important! DS5i Smart Station has two separate program buttons inside. One on the left, and one on the right. To program fingerprints, you will be using the Right Program Button.

STEP 1 : Programming Admin Print 1 of 2

1. Open the safe. Program 1st fingerprint by tapping the “Right Program Button”. The LED ring around the scanner will start flashing RED and the ‘1’ key will start blinking RED.

2. Place your finger on the fingerprint scanner for the 1st of 3 scans. When the safe beeps and the ‘1’ key lights up GREEN remove your finger.

3. Rotate your finger position and place your finger on the scanner again. You will repeat this process until all keys are solid GREEN.

4. Close the safe drawer and test to see if the safe will opens using your fingerprint.

Repeat these steps to enroll the second admin print.

STEP 2 : Programming Admin Print 2 of 2

1. Tap the “Right Program Button” button. The LED ring around the scanner will start flashing RED and the ‘1’ key will start blinking RED.

2. When the 1 keys starts blinking place your finger for scan, 1, 2, 3, and 4.

3. This completes enrollment for the second admin print.

Once both admin prints are enrolled you can program additional prints. Your safe can store up to 20 unique fingerprints. To program addition prints refer to “Programming Additional Prints”.

Having issues? Please email our support team at support@vaulteksafe.com.

The first two fingerprints programmed into the safe are the administrative fingerprints. Any additional users programmed require authorization from one of these fingerprints.

Fingerprint TIPS!

• Place the core of the fingerprint flat over the center of the scanner. This allows the scanner to read where most of the fingerprint detail is located.
• Rotate your finger slightly between registration scans to store print variations for increased accuracy.
• Biometric technology is dependent on our anatomical information, and in some cases different fingers may program better than others. For example, your index finger may not register very well, but your thumb may contain higher detail levels and have a much higher success rate. We suggest to try different fingers including your thumb and see if you have better results.
• To increase success rate register the same finger multiple times. Note, that adding more than two fingerprints requires authorization from the two administrative prints.

Important! DS5i Smart Station has two separate program buttons inside. One on the left, and one on the right. To program fingerprints, you will be using the Right Program Button.

Programming Additional Fingerprints

1. Open the safe. Program additional fingerprints by taping the “Right Program Button”. The LED around the scanner will be solid YELLOW prompting you to scan one of the administrative fingerprints.

2. Place either of the first two programmed administrative fingerprints on the scanner and remove when the safe beeps and the scanner blinks GREEN. When the ‘1’ key starts blinking RED you can enroll a NEW fingerprint.

Tip! If the administrative print is left on the scanner too long the safe will begin to program that fingerprint into the safe again and not the NEW fingerprint. If this happens start over with step one.

3. Place the NEW finger on the scanner. When the safe beeps and the ‘1’ key lights up GREEN, remove your finger.

4. Place finger again over the scanner until the safe beeps and the ‘2’ key lights up GREEN and lift. You will repeat this process until all keys are solid GREEN.

Tip! Repeat steps 1-4 to continue adding additional prints.

Troubleshooting! If you are having difficulty with your print, program the same fingerprint 4 or 5 times. You have 20 slots available for programming and you can also try your thumb as it has more surface area to read.

Having issues? Please email our support team at support@vaulteksafe.com.

If you are having difficulty with your print, program the same fingerprint 4 or 5 times. You have 20 slots available for programming and you can also try your thumb as it has more surface area to read.

STEP 1 : Let’s delete the fingerprints and start over.

1. Press and hold the “Right Program Button” and ‘1’ key until all the keys (1-8) light up RED and enter your master code. If the code is correct, all the numbers on the keypad will blink GREEN and beep indicating deletion of all the fingerprints.

STEP 2 : Program the First Print

Now let’s try reprogramming your fingerprint using the helpful tips below.

Fingerprint TIPS!

• Place the core of the fingerprint flat over the center of the scanner. This allows the scanner to read where most of the fingerprint detail is located.
• Rotate your finger slightly between registration scans to store print variations for increased accuracy.
• Biometric technology is dependent on our anatomical information, and in some cases different fingers may program better than others. For example, your index finger may not register very well, but your thumb may contain higher detail levels and have a much higher success rate. We suggest to try different fingers including your thumb and see if you have better results.
• To increase success rate register the same finger multiple times. Note, that adding more than two fingerprints requires authorization from the two administrative prints.

Program Admin Print 1 and 2

1. Open the safe. Program 1st fingerprint by tapping the “Right Program Button” and the ‘1’ key will start flashing RED.

2. When the ‘1’ key start blinking place your finger on the fingerprint scanner for the 1st of three scans. When the safe beeps and the ‘1’ keys lights up GREEN remove your finger.

3. Rotate your finger position and place your finger on the scanner again. You will repeat this process until all keys are solid GREEN.

4. Close the safe drawer and test to see if the safe will opens using your fingerprint.

Tip! Program the same fingerprint 4 or 5 times. You have 20 slots available for programming.

Tip! Repeat these steps to enroll the second admin print.

Still having issues? Please contact our support team via email at support@vaulteksafe.com.

DS5i Smart Station has an rapid access backlit 8 digit keypad capable of programming a 4 to 8 digit master code.

DS5i Smart Station has a high resolution biometric scanner capable of storing up to 20 unique fingerprints.

DS5i Smart Station includes two backup manual keys.

Tip! If the power goes out or the safe is unplugged, the backup batteries will provide backup power.

Your Vaultek^® safe supports quick access with Nano Key 2.0 technology. Nano Key 2.0 and Nano Key 2.0 Biometric are not included but can be purchased separately at vaulteksafe.com or from an authorized dealer. Nano Key 2.0 and Nano Key 2.0 Biometric, part of Vaultek’s Nano Key lineup, provides instant access to your safe in the event you need immediate entry.

The unlock slider to open the safe within the Vaultek Bluetooth 2.0 smartphone app is OFF by default and will be grayed out.

1. To toggle the unlock slider ON, press and hold the “Left Program Button” and keys ‘1’ and ‘4’ together for 3 seconds.

2. The keypad will flash GREEN to turn the unlock slider ON or RED to indicate the unlock slider is OFF.

The touch display will display a tamper indicator if an incorrect keypad entry or an unauthorized fingerprint was scanned. You can reset the tamper detection by opening the safe through one of the authorized entry points.

If six (6) consecutive incorrect keypad entries or (6) incorrect fingerprint scans are made. The safe will not accept any entries for four minutes. If any additional attempts are made the alarm will beep. The Security Sleep Mode can be cleared upon unlock of the safe by any authorized access method including the backup keys.

Activates when six (6) consecutive incorrect keypad entries or (6) incorrect fingerprint scans are made. The safe will not accept any entries for four minutes. If any additional attempts are made the alarm will beep. The security sleep mode can be cleared upon unlock of the safe by any authorized access method including the backup keys.

Included is a security cable to attach your safe to larger stationary objects.

1) Loop the security cable around a secured object. Run the end of the cable through the eye of the other end and pull tight around the object.

2) Open safe drawer, and insert the clamped end of the security cable into the rear slot.

3) Slide the cable end all the way to the opposite side.

4) Shut the safe drawer to lock the security cable in place.

Tip! The security cable can only be inserted and removed while the safe drawer is open.

Your safe can be mounted using a mounting plate (sold separately).

Tip! Make sure you have enough clearance for the safe to open properly before mounting the safe.

1) Position the mounting plate on a flat surface where you want to mount it.

2) Use a pencil to mark the holes for drilling.

3) Drill pilot holes.

4) Position safe in place and install screws through safe into pilot holes. Tighten screws.

Your safe needs to be plugged in continuously and two AAA batteries need to be installed for normal functions.

Two AAA batteries need to be installed. We recommend using brand name batteries from Duracell/Energizer or other reputable brands.

If the power goes out or the safe is unplugged, the charging capabilities and the front LED screen will turn off to preserve battery life and the backup batteries will provide backup power.

Your safe features a Low Battery Warning that will sound when the backup batteries are low, and will sound continually every 8 minutes until the battery dies.

1. To toggle press and hold “Right Program Button” and the ‘3’ key together for 3 seconds.

2. The keys will flash GREEN indicating the low battery warning is ON or RED indicating that it is OFF.

Use the top mounted wireless charging pad to quickly and efficiently charge your phone as needed.

The wireless charging pad is compatible with devices that support wireless charging. There are also additional charging ports on the back of the safe to charge additional devices.

Important! DS5i Smart Station has to be plugged in before charging a device on the charging pad.

1. Place your smartphone device flat and centered on the charging pad. Your phone will start charging and the safe will beep and display a charging icon on the front screen to indicate it’s charging.

Troubleshooting! If the smartphone and charging pad are not aligned properly the wireless charging will not work. Try moving your phone around the charging pad to align it with the center of the charging pad. Ensure that the center of your smartphone’s back lines up close to the center of the charging pad. The safe will beep and display a charging icon on the front screen to indicate charging.

Not all phones are compatible with wireless charging. However, there are ports on the back of the safe to charge your device using standard cables.

You can disable the LED ring around the wireless charging pad in the Vaultek Bluetooth 2.0 smartphone app.

1. Download the Vaultek Bluetooth 2.0 app from Google Play and Apple Store.

2. Make sure your phone’s Bluetooth settings are set to ON, and open the Vaultek Bluetooth app to begin.

Important! You must be within Bluetooth range to pair your phone with your safe. The approximate range is 25 feet.

3. Create a Pattern Lock: This is an added layer of protection to safeguard your safe and prevent unauthorized access in the event your phone is misplaced. To create your pattern lock, simply drag your finger along the screen to connect at least four dots. This unique pattern will be required each time you open the app, and can be disabled if preferred.

4. Select Your Safe: After a few seconds your safe will appear in the search.  You can drag the screen downwards to refresh if you are not seeing your safe listed. Select your safe, and follow the on screen prompts to pair.

5. Follow the onscreen prompts.

Note, Vaultek does not in any way access your personal data (including photos, locations, contacts, etc). The app requires permissions to store certain preferences such as safe settings and fingerprint ID names in the memory of your phone. It also uses the Bluetooth function of your phone for wireless communication with your safe.

Having issues? Please contact our support team via email at support@vaulteksafe.com.

The clock will automatically update once the safe is paired with the Vaultek Bluetooth 2.0 smartphone app.

Pair your safe with the Vaultek Bluetooth 2.0 app.

1. Download the Vaultek Bluetooth 2.0 app from Google Play and Apple Store.

2. Make sure your phone’s Bluetooth settings are set to ON, and open the Vaultek Bluetooth app to begin.

Important! You must be within Bluetooth range to pair your phone with your safe. The approximate range is 25 feet.

3. Create a Pattern Lock: This is an added layer of protection to safeguard your safe and prevent unauthorized access in the event your phone is misplaced. To create your pattern lock, simply drag your finger along the screen to connect at least four dots. This unique pattern will be required each time you open the app, and can be disabled if preferred.

4. Select Your Safe: After a few seconds your safe will appear in the search.  You can drag the screen downwards to refresh if you are not seeing your safe listed. Select your safe, and follow the on screen prompts to pair.

5. Follow the onscreen prompts.

Note, Vaultek does not in any way access your personal data (including photos, locations, contacts, etc). The app requires permissions to store certain preferences such as safe settings and fingerprint ID names in the memory of your phone. It also uses the Bluetooth function of your phone for wireless communication with your safe.

Having issues? Please contact our support team via email at support@vaulteksafe.com.

Set the brightness levels from the Vaultek Bluetooth 2.0 smartphone app or by tapping the top left corner of the touch screen to toggle between settings.

You can set your preferred display screen including the ability to ‘blackout’ which is a completely empty display.

1. To adjust what Graphics are displayed on the LED screen tap the time, located in the middle of the screen. This will cycle through different graphic loadouts on the screen. The last setting in the cycle will be the ‘blackout’ with a completely empty display.

Use the touch zone to wake the safe as desired and quickly view safe status.

The sound pitch can be set to either High pitch, Medium pitch, Low pitch, or OFF.

1. Open your safe and press the “Left Program Button” on the inside of the safe.

2. Once you have pressed that button the safe screen will enter an edit mode where you can adjust some of the safes settings by touching the screen.

3. Once you are done making adjustments you can exit the settings by pressing the “Left Program Button”.

You can also enable or disable the sound from the Vaultek^® Bluetooth 2.0 smartphone app.

The interior light brightness can be set either 100% brightness, 75%, 50%, 25%, and OFF.

1. Open your safe and press the “Left Program Button” on the inside of the safe.

2. Once you have pressed that button the safe screen will enter an edit mode where you can adjust some of the safes settings by touching the screen.

3. Once you are done making adjustments you can exit the settings by pressing the “Left Program Button”.

You also adjust the interior light brightness from the Vaultek^® Bluetooth 2.0 smartphone app.

The temperature reading for inside the safe can be set to either Fahrenheit or Celsius.

1. Open your safe and press the “Left Program Button” on the inside of the safe.

2. Once you have pressed that button the safe screen will enter an edit mode where you can adjust some of the safes settings by touching the screen.

3. Once you are done making adjustments you can exit the settings by pressing the “Left Program Button”.

You can also set the temperature reading from the Vaultek^® Bluetooth 2.0 smartphone app.

The Bluetooth connectivity  can be enabled or disabled completely. If disabled no one will be able to pair with your safe.

1. Open your safe and press the “Left Program Button” on the inside of the safe.

2. Once you have pressed that button the safe screen will enter an edit mode where you can adjust some of the safes settings by touching the screen.

3. Once you are done making adjustments you can exit the settings by pressing the “Left Program Button”.

You can enable/disable Nano Key from the Vaultek Bluetooth 2.0 smartphone app or using the sequence below. If disabled no one will be able to pair a Nano Key to your safe. This will not remove a paired Nano Key.

1. Open your safe and press the “Left Program Button” on the inside of the safe.

2. Once you have pressed that button the safe screen will enter an edit mode where you can adjust some of the safes settings by touching the screen.

3. Once you are done making adjustments you can exit the settings by pressing the “Left Program Button”.

You can unpair Nano Key 2.0 using the unpairing steps below:

ALWAYS unpair Nano Key in the event it is lost or stolen.

1) Press and hold the “Left Program Button” and the ‘4’ key together (3 seconds) until all keys turn GREEN. This indicates that all paired Nano Key 2.0’s have been deleted from memory.

Your safe features a Low Battery Warning that will sound when the backup batteries are low, and will sound continually every 8 minutes until the battery dies.

1. To toggle press and hold “Right Program Button” and the ‘3’ key together for 3 seconds.

2. The keys will flash GREEN indicating the low battery warning is ON or RED indicating that it is OFF.

If the Alert of Manual Unlock is ON, and someone opens the safe with either the key or by picking the log, the keypad will start flashing RED and beep for 10 seconds.

To clear the alarm you must enter the master code or scan an authorized fingerprint.

1. To toggle Alert of Manual Unlock press and key ‘4’ and the “Right Program Button” together for 3 seconds.

2. The keypad will flash GREEN indicating enabled and RED indicating DISABLED.

You can also enable or disable Alert of Manual Unlock from the Vaultek^® Bluetooth 2.0 smartphone app.

Dual Entry Mode requires input of master code and enrolled fingerprint or vice versa to open safe.

This mode requires that at least one fingerprint be programmed in the safe.

1. To toggle ON/OFF press and hold the “Right Program Button” and the ‘2’ key together for 3 seconds.

2. If the keypad flashes RED the feature is OFF, if the keypad flashes GREEN the feature is ON.

You can also enable or disable Dual Entry Mode from the Vaultek^® Bluetooth 2.0 smartphone app.

The Factory Reset erases all programmed information and restores the safe to its default settings. This includes removing any enrolled fingerprints and resetting the master code to 1-2-3-4. The safe will need to be reconfigured again to work with the Vaultek^® Bluetooth^® 2.0 smartphone app.

1. Before you perform a Factory Reset make sure the safe is plugged in.

2. To perform a factory reset, press and hold “Left Program Button” and “Right Program Button” together until the keypad flashes GREEN and the safe restarts.

The Vaultek^® Bluetooth^® 2.0 smartphone app lets you get the most out of your safe. Using the app gives you access and control over features that are not possible using the display interface alone.

1. Download the Vaultek^® Bluetooth^® 2.0 app from Google Play and Apple Store.

2. Make sure your phone’s Bluetooth^® settings are set to ON, and open the Vaultek^® Bluetooth^® app to begin.

Important! You must be within Bluetooth^® range to pair your phone with your safe. The approximate range is 25 feet.

3. Create a Pattern Lock: This is an added layer of protection to safeguard your safe and prevent unauthorized access in the event your phone is misplaced. To create your pattern lock, simply drag your finger along the screen to connect at least four dots. This unique pattern will be required each time you open the app, and can be disabled if preferred.

4. Select Your Safe: After a few seconds your safe will appear in the search.  You can drag the screen downwards to refresh if you are not seeing your safe listed. Select your safe, and follow the on screen prompts to pair.

5. Follow the onscreen prompts.

Note, Vaultek does not in any way access your personal data (including photos, locations, contacts, etc). The app requires permissions to store certain preferences such as safe settings and fingerprint ID names in the memory of your phone. It also uses the Bluetooth function of your phone for wireless communication with your safe.

App Unlock Feature: By default, the unlock feature on the Vaultek Bluetooth 2.0 app will be disabled. If you wish to enable this feature, press and hold the “Left Program Button” and the ‘1’ and ‘4’ keys together for 3 seconds. The keypad will flash GREEN indicating enabled. Repeat the sequence to disable the unlock feature.

Having issues? Please contact our support team via email at support@vaulteksafe.com.

1) From the Vaultek Bluetooth 2.0 app dashboard select “More” from the lower right corner.

2) Select “Name Your Safe”.

3) Now name your safe to whatever you like.

By default, the unlock feature on the Vaultek Bluetooth 2.0 app will be disabled.

1. If you wish to enable this feature, press and hold the “Left Program Button” and the ‘1’ and ‘4’ keys together for 3 seconds. The keypad will flash GREEN indicating enabled.

2. Repeat the sequence to disable the unlock feature.

Bluetooth connection is ON by default. The connection toggle when OFF stops all app communication, such as the phone unlock command and eliminates any outside sources from connecting to the safe over Bluetooth including already paired devices.

1. To toggle app connections ON/OFF tap the “Left Program Button”. The keypad will start flashing RED indicating you can adjust the settings from the touch screen.

2. On the safes screen, tap the Bluetooth icon to enabled or disable.

3. Once adjusted, tap the “Left Program Button” to exit the screen settings. The Bluetooth icon on the screen will indicated OFF or ON. When OFF, a paired phone will not be able to operate the app until the connection has been turned ON.

Used in the event you wish to unpair any connected smartphone from the safe.

1. To unpair press and hold the “Left Program Button” and the ‘3’ key together for 3 seconds. If the keypad flashes GREEN this indicates all smartphones have been removed from the safe.

Take caution when using this feature and be responsible. Security can be compromised in the event Nano Key is lost or stolen. Only pair Nano Key after thoroughly understanding the inherent risks.

– Avoid unintentional safe open, Nano Key should only be used when the safe is in sight.
– WARNING anyone including children can access the safe with Nano Key.
– ALWAYS unpair Nano Key in the event it is lost or stolen. Refer to the unpairing steps.

Important! You must be within 6′ from the safe to pair Nano Key Bluetooth 2.0.

1) With the safe open press and hold the “Left Program Button” and the ‘2’ key together (3 seconds) until all keys start blinking RED.

2) Immediately aim Nano Key 2.0 towards the safe.

3) Press and hold the Nano Key 2.0 button until the safe keypad flashes GREEN to indicate pairing is successful.

Having issues? Please email our support team at support@vaulteksafe.com.

Take caution when using this feature and be responsible. Security can be compromised in the event Nano Key is lost or stolen. Only pair Nano Key after thoroughly understanding the inherent risks.

ALWAYS unpair Nano Key in the event it is lost or stolen.

1) Press and hold the “Left Program Button” and the ‘4’ key together (3 seconds) until all keys turn GREEN. This indicates that all paired Nano Key 2.0’s have been deleted from memory.

Having issues? Please email our support team at support@vaulteksafe.com.

Enabling/disabling Nano Key Bluetooth 2.0 from the app or safe will NOT unpair a Nano Key 2.0 from the safe’s memory. You can does so from the touch screen, or Bluetooth 2.0 app. When disabled, Nano Key can not be used to open a paired safe. When enabled, Nano Key 2.0 will resume normal operation and open a paired safe.

Important! Enabling/disabling Nano Key 2.0 from the touch screen or Bluetooth 2.0 app will NOT unpair a Nano Key from the safe’s memory.

Important! In the event Nano Key is lost or stolen, you should unpair the lost Nano Key from the safe’s memory. This will remove all paired Nano Key 2.0 from the safe.

1. Open your safe and press the “Left Program Button” on the inside of the safe.

2. Once you have pressed that button the safe screen will enter an edit mode where you can adjust some of the safes settings by touching the screen.

3. Once you are done making adjustments you can exit the settings by pressing the “Left Program Button”.

Having issues? Please email our support team at support@vaulteksafe.com.

Before programming the fingerprints to Nano Key 2.0 Biometric lets cover a few tips.

Tip! The first print is the admin print which is used to authorize the programming of additional prints.

Tip! When programming you will scan your fingerprint 3 times.

Fingerprint TIPS!

• Place the core of the fingerprint flat over the center of the scanner. This allows the scanner to read where most of the fingerprint detail is located.
• Rotate your finger slightly between registration scans to store print variations for increased accuracy.
• Biometric technology is dependent on our anatomical information, and in some cases different fingers may program better than others. For example, your index finger may not register very well, but your thumb may contain higher detail levels and have a much higher success rate. We suggest to try different fingers including your thumb and see if you have better results.
• To increase success rate register the same finger multiple times. Note, that adding more than two fingerprints requires authorization from the two administrative prints.

Important! You need to have at least one fingerprint programmed in Nano Key 2.0 Biometric for it to pair with DS2i Smart Station.

STEP 1 : Programming the Admin Print

The first programmed fingerprint is considered the Admin print. This print is necessary to authorize adding additional users or to authorize the deletion of all prints.

1. Quickly press the top PROGRAM button on Nano Key 2.0 Biometric. The LED ring will turn solid RED indicating you can place your fingerprint on the scanner for the first of 3 registration scans.

2. Place your finger on the scanner, when you hear a confirmation beep and the LED ring flashes GREEN, lift your finger and repeat two more scans to complete the programming of the first user.

STEP 2 : Programming Additional Prints

After the Admin print has been locked in, you can add additional users or fingerprints, up to 20 unique users in total.

1. Quickly press the PROGRAM button. The LED ring will turn solid YELLOW requesting you to place the Admin print on the scanner to authorize the request to add a new user.

2. Scan the admin print. When successful, you will hear a confirmation beep and the LED ring will flash GREEN then back to RED indicating you can proceed with the first of (3) registration scans of the additional print.

You are now ready to pair Nano Key 2.0 Biometric to your safe.

Having issues? Please email our support team at support@vaulteksafe.com.

Once fingerprints are programmed into Nano Key 2.0 Biometric you can pair it to your safe.

Important! You need to have at least one fingerprint programmed in Nano Key 2.0 Biometric for it to pair with DS2i Smart Station.

Important! You must be within 6′ from the safe to pair Nano Key 2.0 Biometric to your safe.

1. With the safe open press and hold the “Left Program Button” and the ‘2’ key together (3 seconds) until all keys start blinking RED.

2. Immediately aim Nano Key 2.0 Biometric towards the safe and scan a programmed fingerprint. The keypad will flash GREEN indicating pairing is successful.

Having issues? Please email our support team at support@vaulteksafe.com.

Take caution when using this feature and be responsible. Security can be compromised in the event Nano Key is lost or stolen. Only pair Nano Key after thoroughly understanding the inherent risks.

ALWAYS unpair Nano Key in the event it is lost or stolen.

1) Press and hold the “Left Program Button” and the ‘4’ key together (3 seconds) until all keys turn GREEN. This indicates that all paired Nano Key 2.0’s have been deleted from memory.

Having issues? Please email our support team at support@vaulteksafe.com.

Follow these steps if your Nano Key 2.0 Biometric is paired to a safe and you want to pair it to a new safe.

Option 1 : Unpair Nano Key 2.0 Biometric from safe then Pair it with New Safe

1. Press and hold the “Left Program Button” and the ‘4’ key together (3 seconds) until all keys turn GREEN. This indicates that all paired Nano Key 2.0’s have been deleted from memory.

2. You are now ready to pair Nano Key 2.0 Biometric to the new safe.

Option 2 : Manually Pair Nano Key 2.0 Biometric to New Safe

1. With the safe open press and hold the “Left Program Button” and the ‘2’ key together (3 seconds) to enter pairing mode. All keys will start flashing on safe.

2. Immediately press the Program button 3 times on Nano Key 2.0 Biometric.

3. Immediately scan an admin print and Nano Key 2.0 Biometric to pair it with the new safe.

Having issues? Please email our support team at support@vaulteksafe.com.

Enabling/disabling Nano Key Bluetooth 2.0 from the app or safe will NOT unpair a Nano Key 2.0 from the safe’s memory. You can does so from the touch screen, or Bluetooth 2.0 app. When disabled, Nano Key can not be used to open a paired safe. When enabled, Nano Key 2.0 will resume normal operation and open a paired safe.

Important! Enabling/disabling Nano Key 2.0 from the touch screen or Bluetooth 2.0 app will NOT unpair a Nano Key from the safe’s memory.

Important! In the event Nano Key is lost or stolen, you should unpair the lost Nano Key from the safe’s memory. This will remove all paired Nano Key 2.0 from the safe.

1. Open your safe and press the “Left Program Button” on the inside of the safe.

2. Once you have pressed that button the safe screen will enter an edit mode where you can adjust some of the safes settings by touching the screen.

3. Once you are done making adjustments you can exit the settings by pressing the “Left Program Button”.

Having issues? Please email our support team at support@vaulteksafe.com.

The clock will automatically update once the safe is paired with the Vaultek Bluetooth 2.0 smartphone app.

1. Download the Vaultek Bluetooth 2.0 app from Google Play and Apple Store.

2. Make sure your phone’s Bluetooth settings are set to ON, and open the Vaultek Bluetooth app to begin.

Important! You must be within Bluetooth range to pair your phone with your safe. The approximate range is 25 feet.

3. Create a Pattern Lock: This is an added layer of protection to safeguard your safe and prevent unauthorized access in the event your phone is misplaced. To create your pattern lock, simply drag your finger along the screen to connect at least four dots. This unique pattern will be required each time you open the app, and can be disabled if preferred.

4. Select Your Safe: After a few seconds your safe will appear in the search.  You can drag the screen downwards to refresh if you are not seeing your safe listed. Select your safe, and follow the on screen prompts to pair.

5. Follow the onscreen prompts.

Note, Vaultek does not in any way access your personal data (including photos, locations, contacts, etc). The app requires permissions to store certain preferences such as safe settings and fingerprint ID names in the memory of your phone. It also uses the Bluetooth function of your phone for wireless communication with your safe.

Having issues? Please contact our support team via email at support@vaulteksafe.com.

The keypad will beep and flash when opened until the default master code is changed.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

If the safe is beeping you need to replace the batteries with two new AAA batteries.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

To order a set of keys, charging kit, or steel cable, fill out our Spare Parts form.

Having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Use the top mounted wireless charging pad to quickly and efficiently charge your phone as needed.

Important! Smart Station has to be plugged in before charging a device on the charging pad.

Place your smartphone device flat and centered on the charging pad. Your phone will start charging and the safe will beep and display a charging icon on the front screen to indicate it’s charging.

Troubleshooting! If the smartphone and charging pad are not aligned properly the wireless charging will not work. Try moving your phone around the charging pad to align it with the center of the charging pad. Ensure that the center of your smartphone’s back lines up close to the center of the charging pad. The safe will beep and display a charging icon on the front screen to indicate charging.

Not all phones are compatible with wireless charging. However, there are ports on the back of the safe to charge your device using standard cables.

Still having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

Make sure you are using the Vaultek Bluetooth 2.0 app and not the Vaultek WiFi app. The device name you may be seeing in the “Select Your Safe” is the default name assigned to the safe. Example: “VAULTEK-1B7A”. Select that and once you successfully pair you can change the name.

Still having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

This safe needs to be plugged in continuously and two AAA batteries need to be installed for normal function. Plug the safe into a power source using the included power adapter.

Still having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!

If you are having difficulty with your print, program the same fingerprint 4 or 5 times. You have 20 slots available for programming and you can also try your thumb as it has more surface area to read.

STEP 1 : Let’s delete the fingerprints and start over.

1) Press and hold the “Right Program Button” and ‘1’ key until all the keys (1-4) light up RED and enter your master code. If the code is correct, all the numbers on the keypad will blink GREEN and beep indicating deletion of all the fingerprints.

STEP 2 : Program the First Print

Now let’s try reprogramming your fingerprint using the helpful tips below.

Fingerprint TIPS!

• Place the core of the fingerprint flat over the center of the scanner. This allows the scanner to read where most of the fingerprint detail is located.
• Rotate your finger slightly between registration scans to store print variations for increased accuracy.
• Biometric technology is dependent on our anatomical information, and in some cases different fingers may program better than others. For example, your index finger may not register very well, but your thumb may contain higher detail levels and have a much higher success rate. We suggest to try different fingers including your thumb and see if you have better results.
• To increase success rate register the same finger multiple times. Note, that adding more than two fingerprints requires authorization from the two administrative prints.

Program Admin Print 1 and 2

1) Open the safe. Program 1st fingerprint by tapping the “Right Program Button” and the ‘1’ key will start flashing RED.

2) When the ‘1’ key start blinking place your finger on the fingerprint scanner for the 1st of three scans. When the safe beeps and the ‘1’ keys lights up GREEN remove your finger.

3) Rotate your finger position and place your finger on the scanner again. You will repeat this process until all keys are solid GREEN.

4) Close the safe drawer and test to see if the safe will opens using your fingerprint.

Tip! Program the same fingerprint 4 or 5 times. You have 20 slots available for programming.

Tip! Repeat these steps to enroll the second admin print.

Still having issues? Please contact our support team via email at support@vaulteksafe.com.

Your safe has a list of available settings that can be changed from either the safe or Vaultek^® Bluetooth 2.0 app.

The unlock slider to open the safe within the Bluetooth 2.0 app is OFF by default and will be grayed out. To toggle the unlock slider ON, press and hold the “Left Program Button” and keys ‘1’ and ‘4’ together for 3 seconds. The keypad will flash GREEN to turn the unlock slider ON or RED to indicate the unlock slider is OFF.

Still having issues? Please email our support team at support@vaulteksafe.com. They would be more than happy to help you out!
